1.Openstack入门
孙富阳， 江湖人称没人称。多年互联网运维工作经验，曾负责过孙布斯大规模集群架构自动化运维管理工作。擅长Web集群架构与自动化运维，曾负责国内某大型博客网站运维工作。
1.openstack概述
1.为什么要使用openstack
kvm宿主机 500台
kvm虚拟机 5000台
kvm虚拟机的特点: 虚拟机内部不是透明的,容器内部是透明的
统计centos7.9 系统的虚拟机有多少台?
每个虚拟机的ip地址
统计4c8g 虚拟机数量 2c4g 虚拟机数量
资产表 excel文件
kvm管理平台: 小规模:ovirt WebVirtMgr cloudstack zstack Proxmox VE.....
大规模:openstack 阿里专有云 腾讯专有云 青云 ucloud.....
2.openstack介绍
一开始模仿aws,后来加入自己的特色,兼容aws,开源,社区非常活跃
半年更新一次版本
A,B,C,D....K版L M N O Pike Q R S T U V W X Y Z版
L版的中文官方文档
https://docs.openstack.org/liberty/zh_CN/install-guide-rdo/
M版的中文官方文档
https://docs.openstack.org/mitaka/zh_CN/install-guide-rdo/
N版的中文官方文档
https://docs.openstack.org/newton/zh_CN/install-guide-rdo/
最后一个中文版:
https://docs.openstack.org/ocata/zh_CN/install-guide-rdo/
P版开始,官方文档大变样,不适合新手学习
T版以后,需要centos8的系统
3.openstack基本架构
2.openstack环境准备
1.虚拟机准备
| 节点名称 | 主机名 | ip | 虚拟化 | 内存 |
| 控制节点 | controller | 10.0.0.30 | 开启 | 4G |
| 计算节点 | compute1 | 10.0.0.31 | 开启 | 2G |
| 计算节点 | compute2 | 10.0.0.32 | 开启 | 2G |
由于宿主机无法开启过多的虚拟机，所以将控制节点的服务都部署在了一个虚拟机上
一定要修改ip地址,主机名,host解析
2.openstack yum源准备
[root@controller ~]# curl -o /etc/yum.repos.d/CentOS-Base.repo http://mirrors.aliyun.com/repo/Centos-7.repo
[root@controller ~]# yum makecache
[root@controller ~]# yum install centos-release-openstack-train.noarch -y
3.openstack 基础服务安装
##安装openstack客户端#所有节点都要做
[root@controller ~]# yum install python-openstackclient -y
##数据库安装#控制节点安装
[root@controller ~]# yum install mariadb mariadb-server python2-PyMySQL -y
[root@controller ~]# cat /etc/my.cnf.d/openstack.cnf
[mysqld]
bind-address = 10.0.0.11
default-storage-engine = innodb
innodb_file_per_table = on
max_connections = 4096
collation-server = utf8_general_ci
character-set-server = utf8
[root@controller ~]# systemctl start mariadb
[root@controller ~]# systemctl enable mariadb
[root@controller ~]# mysql_secure_installation
回车
n
y
y
y
y
##安装消息队列#控制节点
[root@controller ~]# yum install rabbitmq-server -y
[root@controller ~]# systemctl start rabbitmq-server.service
[root@controller ~]# systemctl enable rabbitmq-server.service
[root@controller ~]# rabbitmqctl add_user openstack RABBIT_PASS
[root@controller ~]# rabbitmqctl set_permissions openstack ".*" ".*" ".*"
##安装memcache缓存#控制节点-缓存tocken
[root@controller ~]# yum install memcached python-memcached -y
[root@controller ~]# vim /etc/sysconfig/memcached
OPTIONS="-l 10.0.0.11"
systemctl start memcached.service
systemctl enable memcached.service
3.控制节点安装keystone认证服务
1.创建数据库
mysql -u root -p
MariaDB [(none)]> CREATE DATABASE keystone;
MariaDB [(none)]> GRANT ALL PRIVILEGES ON keystone.* TO 'keystone'@'localhost' \
IDENTIFIED BY 'KEYSTONE_DBPASS';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON keystone.* TO 'keystone'@'%' \
IDENTIFIED BY 'KEYSTONE_DBPASS';
2.安装keystone软件包并配置
###安装包
[root@controller ~]# yum install openstack-keystone httpd mod_wsgi -y
###配置文件
[root@controller ~]# grep -Ev "^#|^$" /etc/keystone/keystone.conf
[DEFAULT]
[application_credential]
[assignment]
[auth]
[cache]
[catalog]
[cors]
[credential]
[database]
connection = mysql+pymysql://keystone:KEYSTONE_DBPASS@controller/keystone
[domain_config]
[endpoint_filter]
[endpoint_policy]
[eventlet_server]
[federation]
[fernet_receipts]
[fernet_tokens]
[healthcheck]
[identity]
[identity_mapping]
[jwt_tokens]
[ldap]
[memcache]
[oauth1]
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_middleware]
[oslo_policy]
[policy]
[profiler]
[receipt]
[resource]
[revoke]
[role]
[saml]
[security_compliance]
[shadow_users]
[token]
provider = fernet
[tokenless_auth]
[totp]
[trust]
[unified_limit]
[wsgi]
###初始化身份认证服务的数据库
[root@controller ~]# su -s /bin/sh -c "keystone-manage db_sync" keystone
###初始化Fernet key
[root@controller ~]# keystone-manage fernet_setup --keystone-user keystone --keystone-group keystone
[root@controller ~]# keystone-manage credential_setup --keystone-user keystone --keystone-group keystone
###初始化keystone
[root@controller ~]# keystone-manage bootstrap --bootstrap-password ADMIN_PASS \
--bootstrap-admin-url http://controller:35357/v3/ \
--bootstrap-internal-url http://controller:5000/v3/ \
--bootstrap-public-url http://controller:5000/v3/ \
--bootstrap-region-id RegionOne
3.配置Apache HTTP 服务器
###修改httpd配置文件
[root@controller ~]# echo "ServerName controller" >>/etc/httpd/conf/httpd.conf
[root@controller ~]# ln -s /usr/share/keystone/wsgi-keystone.conf /etc/httpd/conf.d/
[root@controller ~]# cat /usr/share/keystone/wsgi-keystone.conf
Listen 5000
Listen 35357
<VirtualHost *:5000>
WSGIDaemonProcess keystone-public processes=5 threads=1 user=keystone group=keystone display-name=%{GROUP}
WSGIProcessGroup keystone-public
WSGIScriptAlias / /usr/bin/keystone-wsgi-public
WSGIApplicationGroup %{GLOBAL}
WSGIPassAuthorization On
LimitRequestBody 114688
<IfVersion >= 2.4>
ErrorLogFormat "%{cu}t %M"
</IfVersion>
ErrorLog /var/log/httpd/keystone.log
CustomLog /var/log/httpd/keystone_access.log combined
<Directory /usr/bin>
<IfVersion >= 2.4>
Require all granted
</IfVersion>
<IfVersion < 2.4>
Order allow,deny
Allow from all
</IfVersion>
</Directory>
</VirtualHost>
<VirtualHost *:35357>
WSGIDaemonProcess keystone-admin processes=5 threads=1 user=keystone group=keystone display-name=%{GROUP}
WSGIProcessGroup keystone-admin
WSGIScriptAlias / /usr/bin/keystone-wsgi-admin
WSGIApplicationGroup %{GLOBAL}
WSGIPassAuthorization On
ErrorLogFormat "%{cu}t %M"
ErrorLog /var/log/httpd/keystone-error.log
CustomLog /var/log/httpd/keystone-access.log combined
<Directory /usr/bin>
Require all granted
</Directory>
</VirtualHost>
Alias /identity /usr/bin/keystone-wsgi-public
<Location /identity>
SetHandler wsgi-script
Options +ExecCGI
WSGIProcessGroup keystone-public
WSGIApplicationGroup %{GLOBAL}
WSGIPassAuthorization On
</Location>
[root@controller ~]# systemctl start httpd
[root@controller ~]# systemctl enable httpd
###配置admin账户
[root@controller ~]# export OS_USERNAME=admin
[root@controller ~]# export OS_PASSWORD=ADMIN_PASS
[root@controller ~]# export OS_PROJECT_NAME=admin
[root@controller ~]# export OS_USER_DOMAIN_NAME=Default
[root@controller ~]# export OS_PROJECT_DOMAIN_NAME=Default
[root@controller ~]# export OS_AUTH_URL=http://controller:35357/v3
[root@controller ~]# export OS_IDENTITY_API_VERSION=3
###创建service项目
openstack project create --domain default \
--description "Service Project" service
4.控制节点安装glance镜像服务
1.创建数据库,授权
MariaDB [(none)]> CREATE DATABASE glance;
MariaDB [(none)]> GRANT ALL PRIVILEGES ON glance.* TO 'glance'@'localhost' \
IDENTIFIED BY 'GLANCE_DBPASS';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON glance.* TO 'glance'@'%' \
IDENTIFIED BY 'GLANCE_DBPASS';
2.在keystone创建服务用户,并关联角色
[root@controller ~]# openstack user create --domain default --password GLANCE_PASS glance
[root@controller ~]# openstack role add --project service --user glance admin
3.在keystone上注册api访问地址
[root@controller ~]# openstack service create --name glance \
--description "OpenStack Image" image
[root@controller ~]# openstack endpoint create --region RegionOne \
image public http://controller:9292
[root@controller ~]# openstack endpoint create --region RegionOne \
image internal http://controller:9292
[root@controller ~]# openstack endpoint create --region RegionOne \
image admin http://controller:9292
4.安装glance软件包并配置
###安装
[root@controller ~]# yum install openstack-glance -y
###配置文件修改glance-api配置文件
[root@controller ~]# cat /etc/glance/glance-api.conf
[DEFAULT]
[cors]
[cors.subdomain]
[database]
connection = mysql+pymysql://glance:GLANCE_DBPASS@controller/glance
[glance_store]
stores = file,http
default_store = file
filesystem_store_datadir = /var/lib/glance/images/
[image_format]
[keystone_authtoken]
auth_uri = http://controller:5000
auth_url = http://controller:35357
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = glance
password = GLANCE_PASS
[matchmaker_redis]
[oslo_concurrency]
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_messaging_zmq]
[oslo_middleware]
[oslo_policy]
[paste_deploy]
flavor = keystone
[profiler]
[store_type_location_strategy]
[task]
[taskflow_executor]
###配置文件修改glance-registry配置文件
[root@controller ~]# cat /etc/glance/glance-registry.conf
[DEFAULT]
[database]
connection = mysql+pymysql://glance:GLANCE_DBPASS@controller/glance
[keystone_authtoken]
auth_uri = http://controller:5000
auth_url = http://controller:35357
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = glance
password = GLANCE_PASS
[matchmaker_redis]
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_messaging_zmq]
[oslo_policy]
[paste_deploy]
flavor = keystone
[profiler]
###同步数据库
[root@controller ~]# su -s /bin/sh -c "glance-manage db_sync" glance
###启动服务
[root@controller ~]# systemctl start openstack-glance-api.service openstack-glance-registry.service
[root@controller ~]# systemctl enable openstack-glance-api.service openstack-glance-registry.service
5.验证
wget http://download.cirros-cloud.net/0.3.5/cirros-0.3.5-x86_64-disk.img
[root@controller ~]# openstack image create "cirros" --file cirros-0.3.4-x86_64-disk.img --disk-format qcow2 --container-format bare --public

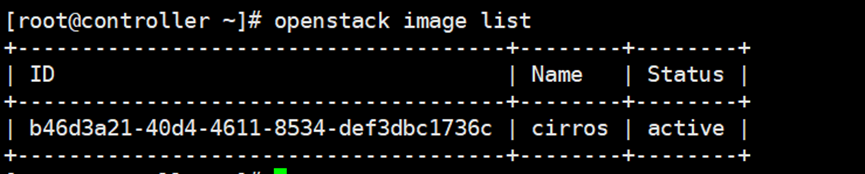

[root@controller ~]# openstack image list
5.安装nove计算服务
1.控制节点组件介绍
openstack-nova-api ##接收外界请求
openstack-nova-conductor 为计算节点更新数据库
openstack-nova-console ##提供认证服务
openstack-nova-novncproxy ##提供web版vnc
openstack-nova-scheduler ##调度服务
openstack-nova-placement-api #跟踪虚拟机状态，关机不收费
2.控制节点创建数据库
MariaDB [(none)]> CREATE DATABASE nova_api;
MariaDB [(none)]> CREATE DATABASE nova;
MariaDB [(none)]> CREATE DATABASE nova_cell0;
MariaDB [(none)]> CREATE DATABASE placement;
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_api.* TO 'nova'@'localhost' \
IDENTIFIED BY 'NOVA_DBPASS';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_api.* TO 'nova'@'%' \
IDENTIFIED BY 'NOVA_DBPASS';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova.* TO 'nova'@'localhost' \
IDENTIFIED BY 'NOVA_DBPASS';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova.* TO 'nova'@'%' \
IDENTIFIED BY 'NOVA_DBPASS';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_cell0.* TO 'nova'@'localhost' \
IDENTIFIED BY 'NOVA_DBPASS';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_cell0.* TO 'nova'@'%' \
IDENTIFIED BY 'NOVA_DBPASS';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON placement.* TO 'placement'@'localhost' \
IDENTIFIED BY 'PLACEMENT_DBPASS';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON placement.* TO 'placement'@'%' \
IDENTIFIED BY 'PLACEMENT_DBPASS';
3.控制节点在keystone创建服务用户,并关联角色
[root@controller ~]# openstack user create --domain default --password NOVA_PASS nova
[root@controller ~]# openstack role add --project service --user nova admin
[root@controller ~]# openstack user create --domain default --password PLACEMENT_PASS placement
[root@controller ~]# openstack role add --project service --user placement admin
4.控制节点在keystone上注册api访问地址
[root@controller ~]# openstack service create --name nova \
[root@controller ~]# --description "OpenStack Compute" compute
[root@controller ~]# openstack endpoint create --region RegionOne \
[root@controller ~]# compute public http://controller:8774/v2.1
[root@controller ~]# openstack endpoint create --region RegionOne \
[root@controller ~]# compute internal http://controller:8774/v2.1
[root@controller ~]# openstack endpoint create --region RegionOne \
[root@controller ~]# compute admin http://controller:8774/v2.1
[root@controller ~]# openstack service create --name placement --description "Placement API" placement
[root@controller ~]# openstack endpoint create --region RegionOne placement public http://controller:8778
[root@controller ~]# openstack endpoint create --region RegionOne placement internal http://controller:8778
[root@controller ~]# openstack endpoint create --region RegionOne placement admin http://controller:8778
5.安装软件包并配置
[root@controller ~]# yum install openstack-nova-api openstack-nova-conductor \
openstack-nova-console openstack-nova-novncproxy \
openstack-nova-scheduler openstack-placement-api -y
###修改nova配置文件
[root@controller ~]# cat /etc/nova/nova.conf
[DEFAULT]
enabled_apis = osapi_compute,metadata
transport_url = rabbit://openstack:RABBIT_PASS@controller
my_ip = 10.0.0.11
use_neutron = True
firewall_driver = nova.virt.firewall.NoopFirewallDriver
[api]
auth_strategy = keystone
[api_database]
connection = mysql+pymysql://nova:NOVA_DBPASS@controller/nova_api
[barbican]
[cache]
[cells]
[cinder]
[cloudpipe]
[conductor]
[console]
[consoleauth]
[cors]
[cors.subdomain]
[crypto]
[database]
connection = mysql+pymysql://nova:NOVA_DBPASS@controller/nova
[ephemeral_storage_encryption]
[filter_scheduler]
[glance]
api_servers = http://controller:9292
[guestfs]
[healthcheck]
[hyperv]
[image_file_url]
[ironic]
[key_manager]
[keystone_authtoken]
auth_uri = http://controller:5000
auth_url = http://controller:35357
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = nova
password = NOVA_PASS
[libvirt]
[matchmaker_redis]
[metrics]
[mks]
[neutron]
[notifications]
[osapi_v21]
[oslo_concurrency]
lock_path = /var/lib/nova/tmp
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_messaging_zmq]
[oslo_middleware]
[oslo_policy]
[pci]
[placement]
os_region_name = RegionOne
project_domain_name = Default
project_name = service
auth_type = password
user_domain_name = Default
auth_url = http://controller:35357/v3
username = placement
password = PLACEMENT_PASS
[quota]
[rdp]
[remote_debug]
[scheduler]
[serial_console]
[service_user]
[spice]
[ssl]
[trusted_computing]
[upgrade_levels]
[vendordata_dynamic_auth]
[vmware]
[vnc]
enabled = true
vncserver_listen = $my_ip
vncserver_proxyclient_address = $my_ip
[workarounds]
[wsgi]
[xenserver]
[xvp]
###修改placement配置
[root@controller ~]# grep -Ev "^#|^$" /etc/placement/placement.conf
[DEFAULT]
[api]
auth_strategy = keystone
[cors]
[keystone_authtoken]
auth_url = http://controller:5000/v3
memcached_servers = controller:11211
auth_type = password
project_domain_name = Default
user_domain_name = Default
project_name = service
username = placement
password = PLACEMENT_PASS
[oslo_policy]
[placement]
[placement_database]
connection = mysql+pymysql://placement:PLACEMENT_DBPASS@controller/placement
[profiler]
6.同步数据库
[root@controller ~]# su -s /bin/sh -c "placement-manage db sync" placement
[root@controller ~]# su -s /bin/sh -c "nova-manage api_db sync" nova
[root@controller ~]# su -s /bin/sh -c "nova-manage cell_v2 map_cell0" nova
[root@controller ~]# su -s /bin/sh -c "nova-manage cell_v2 create_cell --name=cell1 --verbose" nova
[root@controller ~]# su -s /bin/sh -c "nova-manage db sync" nova
7.启动服务
[root@controller ~]# systemctl start openstack-nova-api.service \
openstack-nova-console.service openstack-nova-scheduler.service \
openstack-nova-conductor.service openstack-nova-novncproxy.service
[root@controller ~]# systemctl enable openstack-nova-api.service \
openstack-nova-console.service openstack-nova-scheduler.service \
openstack-nova-conductor.service openstack-nova-novncproxy.service
8.计算节点安装并配置
nova-compute ##调用libvirt 管理虚拟机的生命周期
[root@compute1 ~]# yum install openstack-nova-compute -y
[root@compute1 ~]# cat /etc/nova/nova.conf
[DEFAULT]
enabled_apis = osapi_compute,metadata
transport_url = rabbit://openstack:RABBIT_PASS@controller
my_ip = 10.0.0.31
use_neutron = True
firewall_driver = nova.virt.firewall.NoopFirewallDriver
[api]
auth_strategy = keystone
[api_database]
[barbican]
[cache]
[cells]
[cinder]
[cloudpipe]
[conductor]
[console]
[consoleauth]
[cors]
[cors.subdomain]
[crypto]
[database]
[ephemeral_storage_encryption]
[filter_scheduler]
[glance]
api_servers = http://controller:9292
[guestfs]
[healthcheck]
[hyperv]
[image_file_url]
[ironic]
[key_manager]
[keystone_authtoken]
auth_uri = http://controller:5000
auth_url = http://controller:35357
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = nova
password = NOVA_PASS
[libvirt]
[matchmaker_redis]
[metrics]
[mks]
[neutron]
[notifications]
[osapi_v21]
[oslo_concurrency]
lock_path = /var/lib/nova/tmp
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_messaging_zmq]
[oslo_middleware]
[oslo_policy]
[pci]
[placement]
os_region_name = RegionOne
project_domain_name = Default
project_name = service
auth_type = password
user_domain_name = Default
auth_url = http://controller:35357/v3
username = placement
password = PLACEMENT_PASS
[quota]
[rdp]
[remote_debug]
[scheduler]
[serial_console]
[service_user]
[spice]
[ssl]
[trusted_computing]
[upgrade_levels]
[vendordata_dynamic_auth]
[vmware]
[vnc]
enabled = True
vncserver_listen = 0.0.0.0
vncserver_proxyclient_address = $my_ip
novncproxy_base_url = http://controller:6080/vnc_auto.html
[workarounds]
[wsgi]
[xenserver]
[xvp]
[root@compute1 ~]# systemctl start libvirtd openstack-nova-compute.service
[root@compute1 ~]# systemctl enable libvirtd openstack-nova-compute.service
9.将计算节点添加到单元数据库
[root@controller ~]# su -s /bin/sh -c "nova-manage cell_v2 discover_hosts --verbose" nova
添加新的计算节点时，必须在控制器节点上运行以注册这些新的计算节点。或者，您可以在配置文件中设置适当的自动发现间隔： /etc/nova/nova.conf
[scheduler]
discover_hosts_in_cells_interval = 300
6.安装neutron网络服务
1.控制节点配置数据库授权
###neutron 控制节点
###neutron-server 接收api
###neutron-dhcp 分配ip地址
###neutron-metadata 定制虚拟机
###neutron-bridge-agent
MariaDB [(none)] CREATE DATABASE neutron;
MariaDB [(none)]> GRANT ALL PRIVILEGES ON neutron.* TO 'neutron'@'localhost' \
IDENTIFIED BY 'NEUTRON_DBPASS';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON neutron.* TO 'neutron'@'%' \
IDENTIFIED BY 'NEUTRON_DBPASS';
2.控制节点在keystone创建服务用户,并关联角色
[root@controller ~]# openstack user create --domain default --password NEUTRON_PASS neutron
[root@controller ~]# openstack role add --project service --user neutron admin
3.控制节点在keystone上注册api访问地址
[root@controller ~]# openstack service create --name neutron \
--description "OpenStack Networking" network
[root@controller ~]# openstack endpoint create --region RegionOne \
network public http://controller:9696
[root@controller ~]# openstack endpoint create --region RegionOne \
network internal http://controller:9696
[root@controller ~]# openstack endpoint create --region RegionOne \
network admin http://controller:9696
4.控制节点安装并配置网络服务
###安装
[root@controller ~]# yum install openstack-neutron openstack-neutron-ml2 \
openstack-neutron-linuxbridge ebtables -y
###修改neutron配置文件
[root@controller ~]# cat /etc/neutron/neutron.conf
[DEFAULT]
core_plugin = ml2
service_plugins =
transport_url = rabbit://openstack:RABBIT_PASS@controller
auth_strategy = keystone
notify_nova_on_port_status_changes = true
notify_nova_on_port_data_changes = true
[agent]
[cors]
[cors.subdomain]
[database]
connection = mysql+pymysql://neutron:NEUTRON_DBPASS@controller/neutron
[keystone_authtoken]
auth_uri = http://controller:5000
auth_url = http://controller:35357
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = neutron
password = NEUTRON_PASS
[matchmaker_redis]
[nova]
auth_url = http://controller:35357
auth_type = password
project_domain_name = default
user_domain_name = default
region_name = RegionOne
project_name = service
username = nova
password = NOVA_PASS
[oslo_concurrency]
lock_path = /var/lib/neutron/tmp
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_messaging_zmq]
[oslo_middleware]
[oslo_policy]
[qos]
[quotas]
[ssl]
###修改ml2_conf.ini
[root@controller ~]# cat /etc/neutron/plugins/ml2/ml2_conf.ini
[DEFAULT]
[ml2]
type_drivers = flat,vlan
tenant_network_types =
mechanism_drivers = linuxbridge
extension_drivers = port_security
[ml2_type_flat]
flat_networks = provider
[ml2_type_geneve]
[ml2_type_gre]
[ml2_type_vlan]
[ml2_type_vxlan]
[securitygroup]
enable_ipset = true
###修改linuxbridge-agent配置
[root@controller ~]# cat /etc/neutron/plugins/ml2/linuxbridge_agent.ini
[DEFAULT]
[agent]
[linux_bridge]
physical_interface_mappings = provider:eth0
[securitygroup]
enable_security_group = true
firewall_driver = neutron.agent.linux.iptables_firewall.IptablesFirewallDriver
[vxlan]
enable_vxlan = false
###修改dhcp配置
[root@controller ~]# grep -Ev "^#|^$" /etc/neutron/dhcp_agent.ini
[DEFAULT]
interface_driver = linuxbridge
dhcp_driver = neutron.agent.linux.dhcp.Dnsmasq
enable_isolated_metadata = true
5.配置元数据代理
[root@controller ~]# grep -Ev "^#|^$" /etc/neutron/metadata_agent.ini
[DEFAULT]
nova_metadata_ip = controller
metadata_proxy_shared_secret = METADATA_SECRET
[cache]
6.配置计算服务来使用网络服务
vim /etc/nova/nova.conf
[neutron]
url = http://controller:9696
auth_url = http://controller:35357
auth_type = password
project_domain_name = default
user_domain_name = default
region_name = RegionOne
project_name = service
username = neutron
password = NEUTRON_PASS
service_metadata_proxy = true
metadata_proxy_shared_secret = METADATA_SECRET
7.同步数据库
[root@controller ~]# ln -s /etc/neutron/plugins/ml2/ml2_conf.ini /etc/neutron/plugin.ini
[root@controller ~]# su -s /bin/sh -c "neutron-db-manage --config-file /etc/neutron/neutron.conf \
--config-file /etc/neutron/plugins/ml2/ml2_conf.ini upgrade head" neutron
8.启动服务并验证
[root@controller ~]# systemctl restart openstack-nova-api.service
[root@controller ~]# systemctl start neutron-server.service neutron-linuxbridge-agent.service neutron-dhcp-agent.service neutron-metadata-agent.service
[root@controller ~]# systemctl enable neutron-server.service neutron-linuxbridge-agent.service neutron-dhcp-agent.service neutron-metadata-agent.service

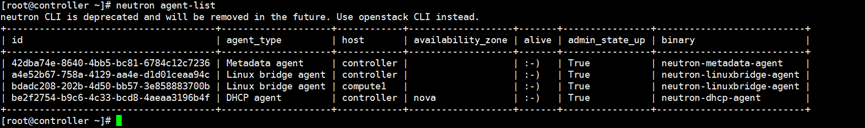

[root@controller ~]# neutron agent-list
9.计算节点安装并配置neutron
##安装
[root@compute1 ~]# yum install openstack-neutron-linuxbridge ebtables ipset
##修改neutron.conf
[root@compute1 ~]# cat /etc/neutron/neutron.conf
[DEFAULT]
transport_url = rabbit://openstack:RABBIT_PASS@controller
auth_strategy = keystone
[agent]
[cors]
[cors.subdomain]
[database]
[keystone_authtoken]
auth_uri = http://controller:5000
auth_url = http://controller:35357
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = neutron
password = NEUTRON_PASS
[matchmaker_redis]
[nova]
[oslo_concurrency]
lock_path = /var/lib/neutron/tmp
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_messaging_zmq]
[oslo_middleware]
[oslo_policy]
[qos]
[quotas]
[ssl]
###修改linuxbridge_agent.ini
[root@compute1 ~]# cat /etc/neutron/plugins/ml2/linuxbridge_agent.ini
[DEFAULT]
[agent]
[linux_bridge]
physical_interface_mappings = provider:eth0
[securitygroup]
enable_security_group = true
firewall_driver = neutron.agent.linux.iptables_firewall.IptablesFirewallDriver
[vxlan]
enable_vxlan = false
##修改nova.conf
vim /etc/nova/nova.conf
[neutron]
url = http://controller:9696
auth_url = http://controller:35357
auth_type = password
project_domain_name = default
user_domain_name = default
region_name = RegionOne
project_name = service
username = neutron
password = NEUTRON_PASS
##启动并验证
[root@controller ~]# systemctl restart openstack-nova-compute.service
[root@controller ~]# systemctl start neutron-linuxbridge-agent.service
[root@controller ~]# systemctl enable neutron-linuxbridge-agent.service
7.安装horizon仪表盘服务
1.安装
[root@compute1 ~]# yum install openstack-dashboard -y2.配置
参考官方文档：
https://docs.openstack.org/horizon/train/install/install-rdo.html
[root@compute1 ~]# vim /etc/openstack-dashboard/local_settings
OPENSTACK_HOST = "controller" #写keystone的地址
ALLOWED_HOSTS = ['*']
SESSION_ENGINE = 'django.contrib.sessions.backends.cache'
CACHES = {
'default': {
'BACKEND': 'django.core.cache.backends.memcached.MemcachedCache',
'LOCATION': '10.0.0.11:11211',
},
}
OPENSTACK_KEYSTONE_MULTIDOMAIN_SUPPORT = False
OPENSTACK_KEYSTONE_DEFAULT_DOMAIN = "Default"
OPENSTACK_API_VERSIONS = {
"identity": 3,
"image": 2,
"volume": 3,
}
OPENSTACK_KEYSTONE_DEFAULT_ROLE = "user"
OPENSTACK_NEUTRON_NETWORK = {
'enable_auto_allocated_network': False,
'enable_distributed_router': False,
'enable_fip_topology_check': False,
'enable_vpn': False,
'enable_lb': False,
'enable_firewall': False,
'enable_ha_router': False,
'enable_ipv6': True,
# TODO(amotoki): Drop OPENSTACK_NEUTRON_NETWORK completely from here.
# enable_quotas has the different default value here.
'enable_quotas': False,
'enable_rbac_policy': True,
'enable_router': False,
'default_dns_nameservers': [],
'supported_provider_types': ['*'],
'segmentation_id_range': {},
'extra_provider_types': {},
'supported_vnic_types': ['*'],
'physical_networks': [],
}
TIME_ZONE = "Asia/Shanghai"
3.登录仪表盘发现如下问题：
访问页面不存在，显示Not Found

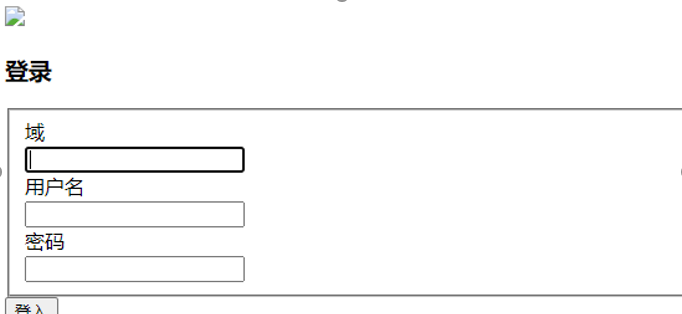

尝试使用http://controller/dashboard/auth/login/进行访问，发现可以访问，但是显示不正常，如下图所示，应该是css和js文件路径有问题。
所以定位了问题，就是服务路径配置问题。分析相关的配置文件/etc/httpd/conf.d/openstack-dashboard.conf和/etc/openstack-dashboard/local_settings。发现/etc/httpd/conf.d/openstack-dashboard.conf文件里的有相关的路径设置，做了如下改动（去掉了路径中的dashboard）
#WSGIScriptAlias /dashboard /usr/share/openstack-dashboard/openstack_dashboard/wsgi/django.wsgi
#Alias /dashboard/static /usr/share/openstack-dashboard/static
WSGIScriptAlias / /usr/share/openstack-dashboard/openstack_dashboard/wsgi/django.wsgi
Alias /static /usr/share/openstack-dashboard/static

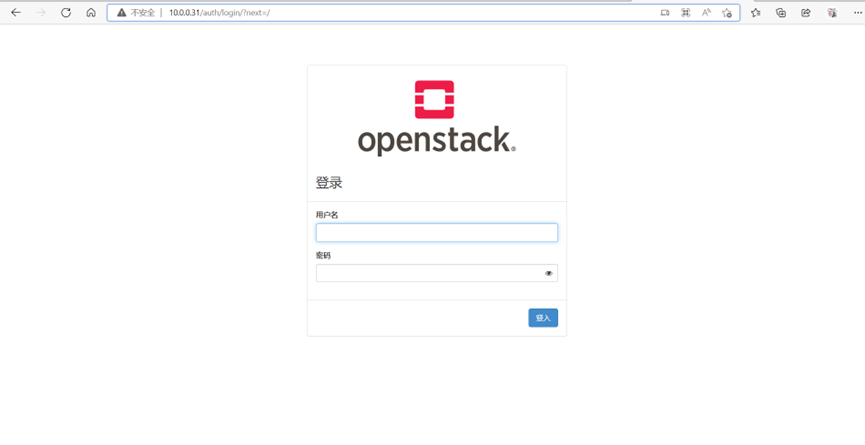

重启httpd服务后，使用http://controller/ 访问网站，恢复正常
初始用户名：admin
密码：ADMIN_PASS
未经允许不得转载：孙某某的运维之路 » 1.Openstack入门
评论已关闭
