1.Ingress控制器概述

为了让Ingress资源工作，集群必须有一个正在运行的Ingress控制器。
与作为 kube-controller-manager 可执行文件的一部分运行的其他类型的控制器不同， Ingress 控制器不是随集群自动启动的。 基于此页面，你可选择最适合你的集群的 ingress 控制器实现。
Kubernetes 作为一个项目，目前支持和维护 AWS、 GCE 和 Nginx Ingress 控制器。
建议阅读：
https://kubernetes.io/zh/docs/concepts/services-networking/ingress-controllers/

2.部署一个Traefik Ingress控制器

建议阅读：
    https://docs.traefik.cn/user-guide/kubernetes
###创建sa服务账号
[root@k8s-master igress]# cat rbac.yaml
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: traefik-ingress-controller
  namespace: kube-system
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: traefik-ingress-controller
rules:
  - apiGroups:
      - ""
    resources:
      - services
      - endpoints
      - secrets
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - extensions
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: traefik-ingress-controller
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: traefik-ingress-controller
subjects:
- kind: ServiceAccount
  name: traefik-ingress-controller
  namespace: kube-system
###部署控制器
[root@k8s-master igress]# cat traefik.yaml
kind: DaemonSet
apiVersion: extensions/v1beta1
metadata:
  name: traefik-ingress-controller
  namespace: kube-system
  labels:
    k8s-app: traefik-ingress-lb
spec:
  selector:
    matchLabels:
      k8s-app: traefik-ingress-lb
  template:
    metadata:
      labels:
        k8s-app: traefik-ingress-lb
        name: traefik-ingress-lb
    spec:
      serviceAccountName: traefik-ingress-controller
      terminationGracePeriodSeconds: 60
      hostNetwork: true
      containers:
      - image: traefik:v1.7.2
        name: traefik-ingress-lb
        ports:
        - containerPort: 80
          name: http
          hostPort: 80
        - containerPort: 8080
          name: admin
        args:
        - --web
        - --kubernetes
        - --logLevel=INFO
---
kind: Service
apiVersion: v1
metadata:
  name: traefik-ingress-service
  namespace: kube-system
spec:
  selector:
    k8s-app: traefik-ingress-lb
  ports:
    - protocol: TCP
      port: 80
      name: web
    - protocol: TCP
      port: 8080
      name: admin
  type: NodePort
访问任意节点的8080端口

3.Ingress规则概述

Ingress 公开了从集群外部到集群内服务的 HTTP 和 HTTPS 路由。 流量路由由 Ingress 资源上定义的规则控制。

建议阅读：
https://kubernetes.io/zh/docs/concepts/services-networking/ingress/

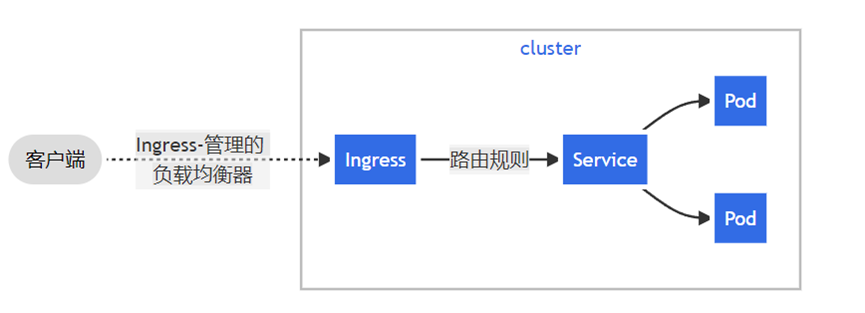

下面是一个将所有流量都发送到同一 Service 的简单 Ingress 示例：

4.创建一个Ingress规则

###创建一个简单的规则
[root@k8s-master igress]# cat ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: traefik-myweb
  namespace: kube-system
  annotations:
    kubernetes.io/ingress.class: traefik ##指定ingress控制器的名字
spec:
  rules:
  - host: nginx.sfy.com ###访问的域名
    http:
      paths:
      - backend:
          serviceName: kubernetes-dashboard  ###svc的名字
          servicePort: 443 ###svc的端口

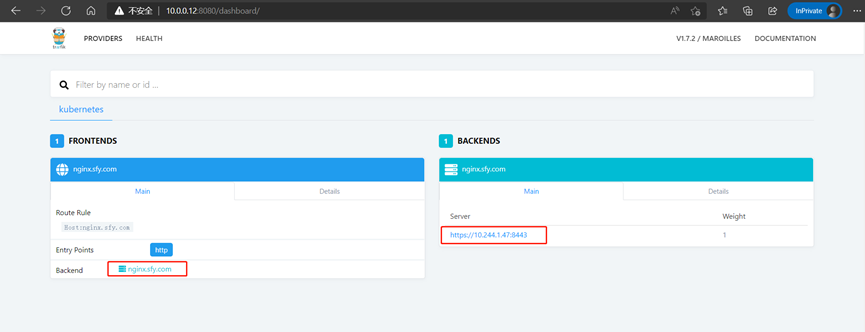

###会发现页面多了如下图所示的域名和pod的地址

5.部署一个nginx Ingress控制器

Nginx ingress控制器没有web页面，所以推荐使用traefik ingress
推荐阅读：
https://kubernetes.github.io/ingress-nginx/deploy/#running-on-kubernetes-versions-older-than-119
https://github.com/kubernetes/ingress-nginx/blob/nginx-0.20.0/deploy/mandatory.yaml
###编写deployment文件
[root@k8s-master igress]# cat nginx-ingress-ctl.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: ingress-nginx

---

apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: default-http-backend
  labels:
    app.kubernetes.io/name: default-http-backend
    app.kubernetes.io/part-of: ingress-nginx
  namespace: ingress-nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app.kubernetes.io/name: default-http-backend
      app.kubernetes.io/part-of: ingress-nginx
  template:
    metadata:
      labels:
        app.kubernetes.io/name: default-http-backend
        app.kubernetes.io/part-of: ingress-nginx
    spec:
      terminationGracePeriodSeconds: 60
      containers:
        - name: default-http-backend
          # Any image is permissible as long as:
          # 1. It serves a 404 page at /
          # 2. It serves 200 on a /healthz endpoint
          image: netonline/defaultbackend:1.4
          livenessProbe:
            httpGet:
              path: /healthz
              port: 8080
              scheme: HTTP
            initialDelaySeconds: 30
            timeoutSeconds: 5
          ports:
            - containerPort: 8080
          resources:
            limits:
              cpu: 10m
              memory: 20Mi
            requests:
              cpu: 10m
              memory: 20Mi

---
apiVersion: v1
kind: Service
metadata:
  name: default-http-backend
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: default-http-backend
    app.kubernetes.io/part-of: ingress-nginx
spec:
  ports:
    - port: 80
      targetPort: 8080
  selector:
    app.kubernetes.io/name: default-http-backend
    app.kubernetes.io/part-of: ingress-nginx

---

kind: ConfigMap
apiVersion: v1
metadata:
  name: nginx-configuration
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx

---

kind: ConfigMap
apiVersion: v1
metadata:
  name: tcp-services
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx

---

kind: ConfigMap
apiVersion: v1
metadata:
  name: udp-services
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx

---

apiVersion: v1
kind: ServiceAccount
metadata:
  name: nginx-ingress-serviceaccount
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx

---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRole
metadata:
  name: nginx-ingress-clusterrole
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
rules:
  - apiGroups:
      - ""
    resources:
      - configmaps
      - endpoints
      - nodes
      - pods
      - secrets
    verbs:
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - nodes
    verbs:
      - get
  - apiGroups:
      - ""
    resources:
      - services
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - "extensions"
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - events
    verbs:
      - create
      - patch
  - apiGroups:
      - "extensions"
    resources:
      - ingresses/status
    verbs:
      - update

---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: Role
metadata:
  name: nginx-ingress-role
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
rules:
  - apiGroups:
      - ""
    resources:
      - configmaps
      - pods
      - secrets
      - namespaces
    verbs:
      - get
  - apiGroups:
      - ""
    resources:
      - configmaps
    resourceNames:
      # Defaults to "<election-id>-<ingress-class>"
      # Here: "<ingress-controller-leader>-<nginx>"
      # This has to be adapted if you change either parameter
      # when launching the nginx-ingress-controller.
      - "ingress-controller-leader-nginx"
    verbs:
      - get
      - update
  - apiGroups:
      - ""
    resources:
      - configmaps
    verbs:
      - create
  - apiGroups:
      - ""
    resources:
      - endpoints
    verbs:
      - get

---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: RoleBinding
metadata:
  name: nginx-ingress-role-nisa-binding
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: nginx-ingress-role
subjects:
  - kind: ServiceAccount
    name: nginx-ingress-serviceaccount
    namespace: ingress-nginx

---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
  name: nginx-ingress-clusterrole-nisa-binding
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: nginx-ingress-clusterrole
subjects:
  - kind: ServiceAccount
    name: nginx-ingress-serviceaccount
    namespace: ingress-nginx

---

apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: nginx-ingress-controller
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app.kubernetes.io/name: ingress-nginx
      app.kubernetes.io/part-of: ingress-nginx
  template:
    metadata:
      labels:
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
      annotations:
        prometheus.io/port: "10254"
        prometheus.io/scrape: "true"
    spec:
      serviceAccountName: nginx-ingress-serviceaccount
      hostNetwork: true
      containers:
        - name: nginx-ingress-controller
          image: quay.mirrors.ustc.edu.cn/kubernetes-ingress-controller/nginx-ingress-controller:0.20.0
          args:
            - /nginx-ingress-controller
            - --default-backend-service=$(POD_NAMESPACE)/default-http-backend
            - --configmap=$(POD_NAMESPACE)/nginx-configuration
            - --tcp-services-configmap=$(POD_NAMESPACE)/tcp-services
            - --udp-services-configmap=$(POD_NAMESPACE)/udp-services
            - --publish-service=$(POD_NAMESPACE)/ingress-nginx
            - --annotations-prefix=nginx.ingress.kubernetes.io
          securityContext:
            capabilities:
              drop:
                - ALL
              add:
                - NET_BIND_SERVICE
            # www-data -> 33
            runAsUser: 33
          env:
            - name: POD_NAME
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
          ports:
            - name: http
              containerPort: 80
              hostIP: 10.0.0.11
            - name: https
              containerPort: 443
              hostIP: 10.0.0.11
          livenessProbe:
            failureThreshold: 3
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          readinessProbe:
            failureThreshold: 3
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1

6.nginx-ingress如何保证pod获取真实IP

建议阅读：
https://github.com/kubernetes/ingress-nginx/blob/main/docs/user-guide/nginx-configuration/configmap.md#use-forwarded-headers
https://kubernetes.io/zh/docs/concepts/services-networking/service-traffic-policy/

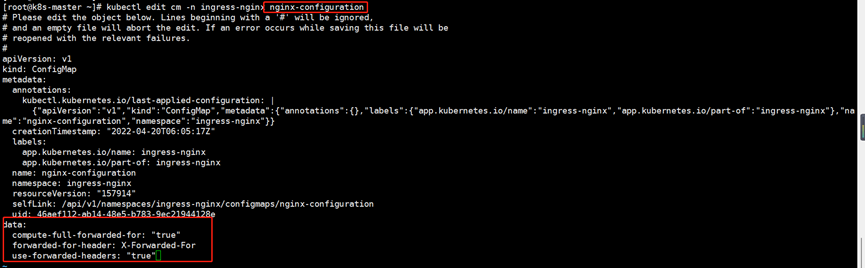

###首先修改名为nginx-configuration的configmap资源，添加如下几行参数
data:
  compute-full-forwarded-for: "true"
  forwarded-for-header: X-Forwarded-For
  use-forwarded-headers: "true"

###然后修改后端pod的svc资源调整网络分发策略为Local
因为如果策略是cluster的话，会隐藏真实的ip，但是cluster负载效果更好一点

7.Ingress的https服务

推荐阅读：
https://kubernetes.io/zh/docs/concepts/services-networking/ingress/
###上传证书到服务器并创建secret资源
[root@k8s-master igress]# kubectl create secret tls www.buyao007.icu --key=./tls.key --cert=./tls.crt
###编辑ingress规则
[root@k8s-master igress]# cat ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: traefik-myweb
spec:
  tls:
  - hosts:
    - www.buyao007.icu
    secretName: www.buyao007.icu
  rules:
  - host: www.buyao007.icu
    http:
      paths:
      - backend:
          serviceName: web
          servicePort: 80
  tls:
  - hosts:
    - www.buyao007.icu
    secretName: www.buyao007.icu
